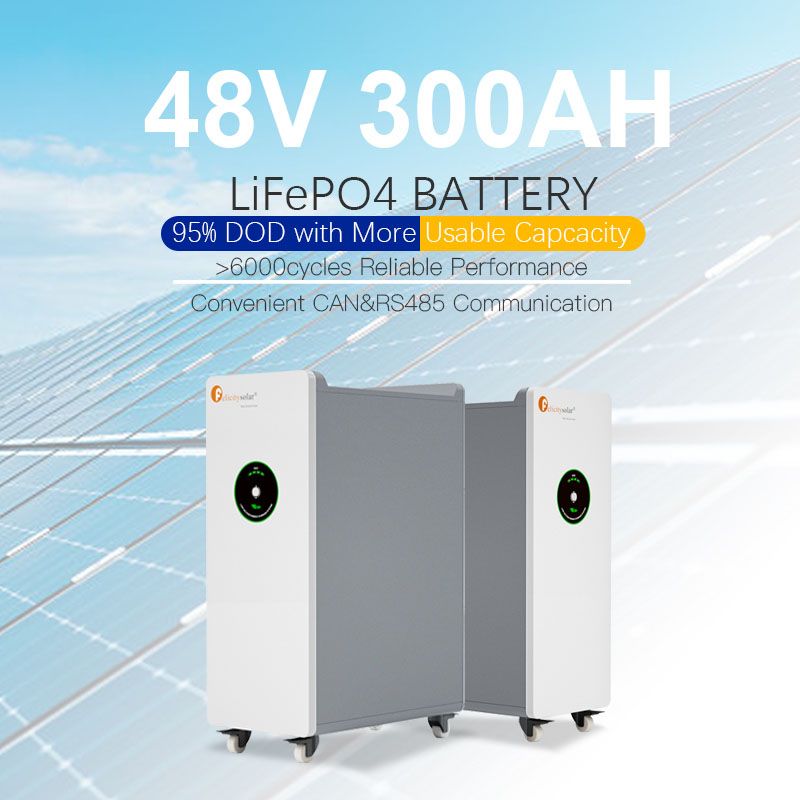

1. Iron Phosphate-lithium Battery Powerwall：95% DOD, More than 6000 cycle times
2. Long warranty period：5years
SPECIFICATION
INTRODUCTION
The 15KW large capacity LPBF48300 is a rechargeable battery system and energy storage device. Comes with pulley battery, easy to move.If you live in an area with frequent power outages,A solar battery gives you peace of mind knowing that even when the grid fails, your power will still be on.
4 advantages of lithium battery applied to solar energy system:
1. Energy independence: Combined with off-grid solar energy system, it will not be affected by grid power failure.
2. Quiet backup power supply: No noise and air pollution caused by high gas consumption generators.
3. Reduce your carbon footprint: Going green, combining solar energy with storage is the best way to ensure your home keeps a small carbon footprint.
4. Save electricity bills: The installation of solar energy systems combined with energy storage batteries is beneficial to reducing long-term expensive electricity bills

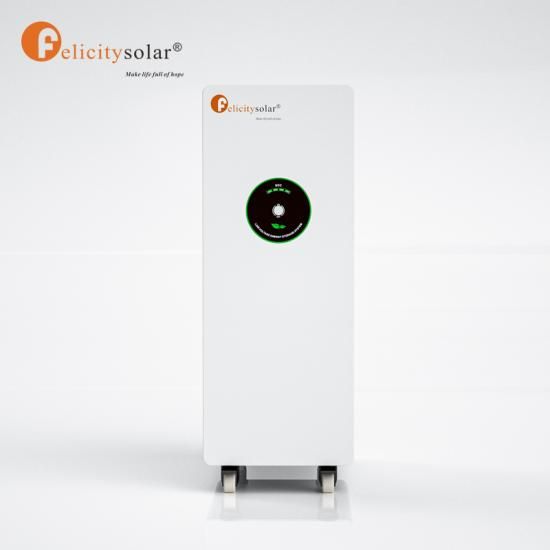

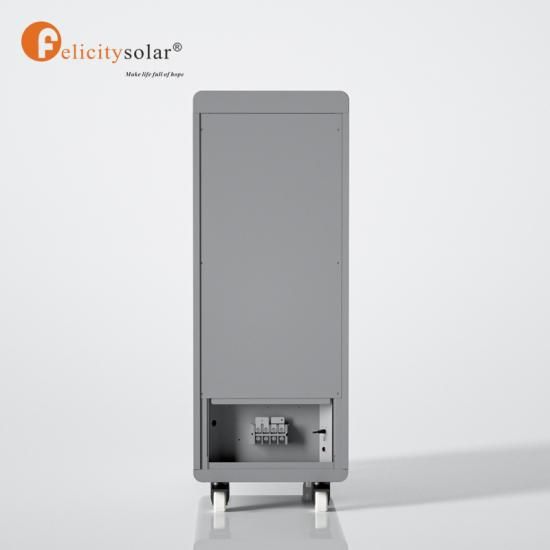

Product Appearance
Iron Phosphate-lithium Battery Powerwall ：95% DOD , More than 6000 cycle times.
Long warranty period：5 years.
Higher energy density,smaller volume for household.
Support Connected in parallel mode for expansion
PRODUCT ADVANTAGES
Efficient power generation
Intelligent and friendly
Safe and worry-free
Fast operation and maintenance
LPBA48300 BATTERY SYSTEM SPECIFICATIONS
| Models | LPBF48250 | LPBF48300 |
| Usable Capacity | 12.5KWH | 15KWH |
| Nominal Voltage | 51.2 | 51.2 |
| Voltage Range | 48-57.6 | 48-57.6 |
| MAX. Charge & Discharge Current | 200A@15S | |
| Recommend Charge & Discharge Current | ≤120A | |
| MAX. Output Power | 10000W | |
| Recommend Output Power | 6000W | |
| DOD | ≥95% | |
| Modules Connection | 1-6in parallel | |
| Communication | CAN&RS485 | |
| Ingress Protection | IP21 | |
| Cycle Life | ≥6000@25°C. 80%DOD | |
| Working Temperature Range | Discharge:-20°C to +65°C, Charge:+0°C to +55C | |
| Net Weight(KG) | 154KG | |
| Gross Weight(KG) | 177KG | |

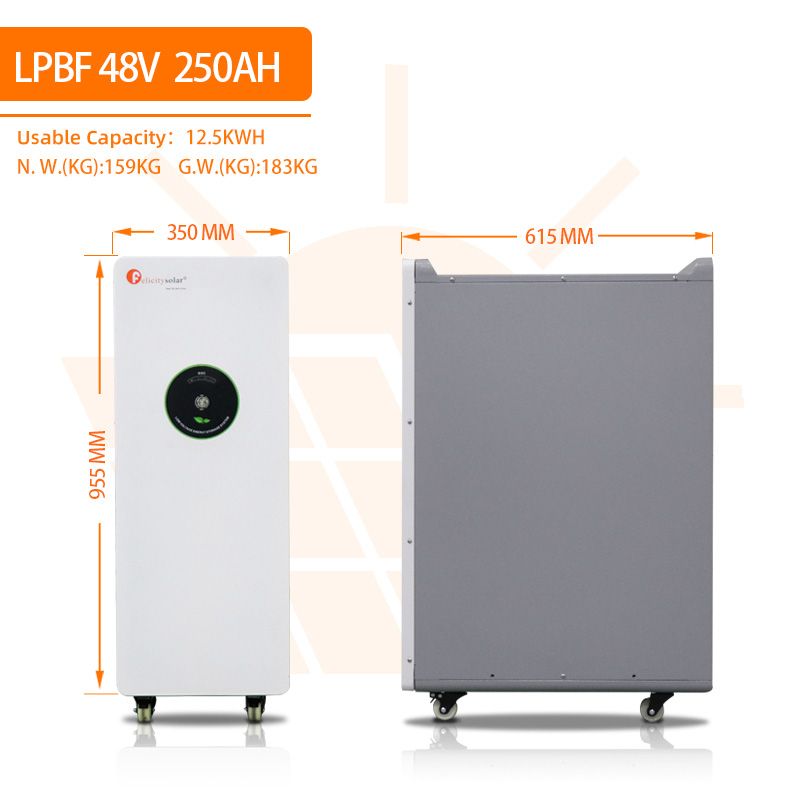

| Product Dimension(mm) | 615x350x955mm | |
| Package Dimension(mm) | 718x450x1112mm | |
